Homework 3: Booleans, Strings, and Arrays

The goal of this homework is to familiarize you with programming in Java. In particular, you will practice:

Using booleans, Strings, and Arrays
Reading from standard input
Reading from files

Instructions

Task 1: Reading and Exercises

Read Algorithms, chapter 1, “Input and output” (pages 36-45) and “Static methods” (pages 22-27)
Read and do the exercises in Java For Python Programmers, “Java Data Types: Input / Output / Scanner” and “Defining Classes in Java”
- In assignments, I recommend using the Algorithms textbook’s StdIn and In classes instead of Java’s built-in Scanner class. However, it is useful to learn about Scanner, since Scanner is widely-used in real-world programs.

Task 2: Coding Practice

To practice using boolean expressions and branching statements, do the following CodingBat problems:

Task 3: Implement Two Programs

This is an individual assignment.

Start by downloading the hw3.zip starter project. Then create two programs:

Caesar.java

Julius Caesar sent secret messages to Cicero using a scheme that is now known as a Caesar cipher. Each letter is replaced by the letter k positions ahead of it in the alphabet (and you wrap around if needed).

The table below gives the Caesar cipher when k = 3:

Original: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Caesar:   D E F G H I J K L M N O P Q R S T U V W X Y Z A B C

For example the message “VENI, VIDI, VICI” is converted to “YHQL, YLGL, YLFL”.

Write a program Caesar.java that takes a command-line argument k and applies a Caesar cipher with shift = k to a sequence of letters read from standard input. If a character is not an uppercase letter (e.g., if the character is a symbol or a lowercase letter), simply print it back out. The program should read from standard input until it encounters the newline character '\n' (i.e., the users presses “Return”). Then, it should print out the shifted text.

Hint: Use the StdIn methods we discussed in class. To use libraries supplied by the textbook authors, you can use either the LIFT menu, or the javac-introcs and java-introcs commands to compile and run your code.

Hint: You can use type casting to convert characters to their ASCII values, and vice-versa. For example, if c is a char variable storing 'A', (int) c will convert it to 65. Casts can be used to go in the opposite direction as well. Use this reference for ASCII code values. Representing characters as numbers makes it easy to do math on them.

Hint: This is how your program should work when it is finished.

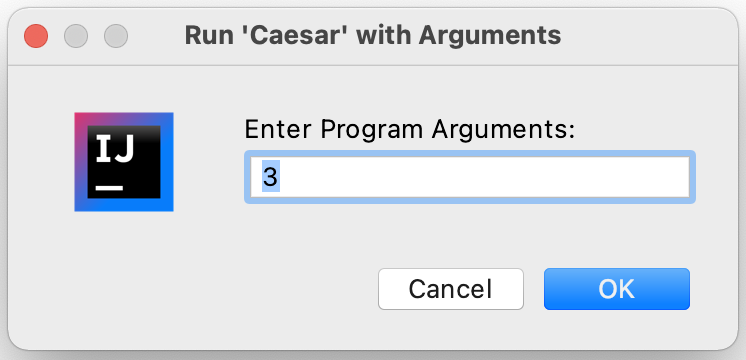

First, you run the program, supplying the shift:

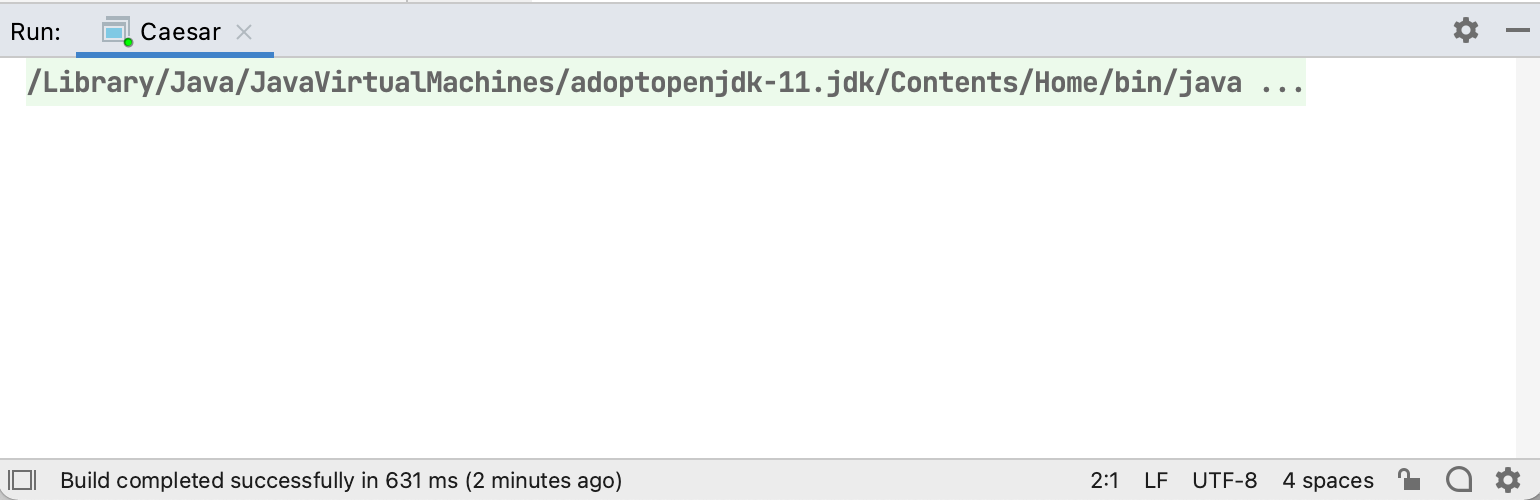

Next, the program will start running, but nothing should appear:

However, you can type. Type the input to the program:

Nothing should happen until you press “Return” or “Enter” on your keyboard. Then, your program should print the shifted output:

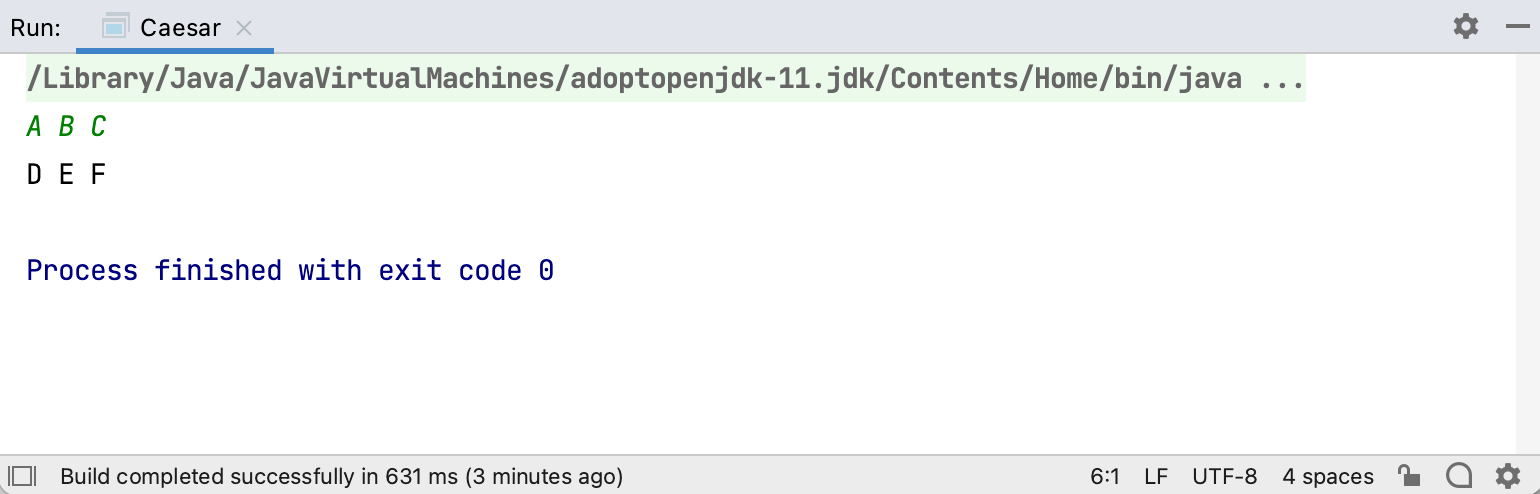

Step 4: Press return, and output should appear

QueensChecker.java

A permutation of n integers in the range 0 to n-1 corresponds to a placement of queens on an n-by-n chessboard so that no two queens are in the same row or column.

Write a program QueensChecker.java that takes a filename as its only command-line argument. Using the permutation encoded in this file, the program should determine whether or not the permutation corresponds to a valid placement of queens so that no two are in the same row, column, or diagonal. The program should print “true” if the permutation is valid, or “false” otherwise.

As an example, assume test1.txt has the following content: 4 1 3 0 2. These numbers correspond to the queens’ positions below, with each number specifying a different queen’s position. This is a legal placement, so the program should print “true”.

> java-introcs QueensChecker test1.txt
* * * Q *
* Q * * *
* * * * Q
* * Q * *
Q * * * *
true

Take a moment to carefully compare this board with the corresponding test input. Assume you write code to store the queen positions in a 1D array, q. How does the length of q correspond to the dimensions of the board? How do the array element values, q[i], i=0, ..., last, correspond to the queens’ positions?

For full-credit, your program should:

Print whether the permutation is valid
Print a board representing the placement of the queens, matching the output shown above

Hint: Create a 2D array representing the queens’ positions, and use this to print out the board. Make sure the orientation matches the board in the example.

Hint: It is possible to check whether the placement is valid using just the 1D array of length n representing the input permutation (e.g., q, as described above).

More hints: To determine whether setting q[i] conflicts with q[j] for i < j.

If q[i] equals q[j]: two queens are placed in the same row
If q[i] - q[j] equals j - i: two queens are on same major diagonal
If q[j] - q[i] equals j - i: two queens are on same minor diagonal

Hint: This code will allow you to read the input filename into the q array. The In() class is supplied by the textbook authors, and works similarly to the StdIn library we covered in lecture.

In in = new In(args[0]);
int[] q = in.readAllInts();

Submit

Upload the following files to Gradescope:

Your two .java files:
- Caesar.java
- QueensChecker.java
A completed readme.txt file, including your name, etc.
